1 Die 2 Blow Header
Coldformers

CS 001

For highest productivity in cold forming.

The header CS 001 is particularly suitable for the heading of very small parts and has been developed with the latest and most advanced technologies.

This new header allows to produce solid components at very high speed up to 660 parts per minute.

The press is also available in the CS 001 RF version, which is designed for the production of semi tubular components at very high speeds.

Request a consultation now To the contact form
Jetzt Beratung anfordern Zum Kontaktformular
icon
1 Die 2 Blow Header
Coldformer
icon
3 mm
Max. wire diameter
icon
660 parts
Output per minute
icon
60 kN
Max. heading tonnage

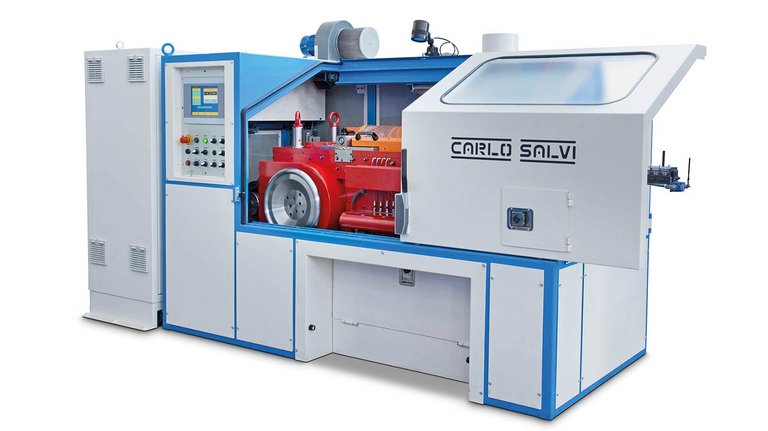

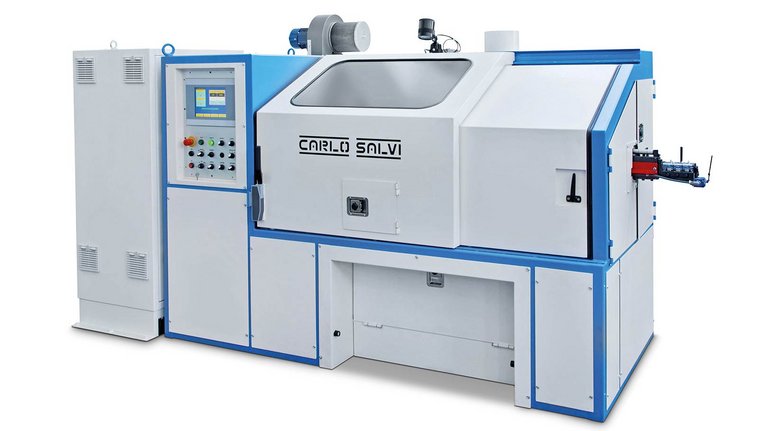

Carlo Salvi 1 Die 2 Blow Header CS 001

Benefit from the following advantages

  • Profitable for small quantities
  • Minimized set-up time
  • Machines are easy to change and to operate

Technical specifications

1 Die 2 Blow Header Model series

  • Number of dies
  • Number of punches
  • Max. Cut-off length
  • Max. head diameter
  • Max. shank length mm
  • Min. and max. wire diameter with a strength of 600 N/mm2 (cold) mm
  • Min. and max. wire diameter with a strength of 1.000 N/mm2 (warm) mm
  • Max. speed* mm
  • Max. heading tonnage pce/min
  • Die diameter and length kN
  • Punch diameter and length mm
  • Stroke of P.K.O.’s mm

CS 001

1

2

35

6,5

22

0,6 – 3

–

660

60

30 x 30

18 x 50

6,5

CS 001 RF

1

2

35

6,5

22

0,6 – 3

–

660

60

30 x 30

18 x 50

6,5

CS 002

1

2

75

10

60

2 – 5

–

400

110

36 x 75

25 x 80

10

CS 002 RF

1

2

65

10

60

2 – 5

–

380

110

36 x 75

25 x 80

10

CS 003

1

2

92

16

80

3 – 7

–

300

200

48 x 95

34 x 110

12

CS 003 WS

1

2

92

16

80

3 – 7

3 – 6,5

300

200

48 x 95

34 x 110

12

CS 003 RF

1

2

92

16

80

3 – 7

–

300

200

48 x 95

34 x 110

12

CS 003 RF WS

1

2

92

16

80

3 – 7

3 – 6,5

300

200

48 x 95

34 x 110

12

CS 7120 DL

1

2

148

16

120

3 – 8

–

200

200

60 x 135

42 x 110

12,5

CS 7148

1

2

148

16

148

4 – 8

–

180

170

60 x 135

42 x 110

12,5

CS 8120 DL

1

2

148

20

120

4 – 10

–

190

280

60 x 140

42 x 130

12,5

CS 8120 DL RF

1

2

148

20

120

4 – 10

–

190

280

60 x 140

42 x 130

12,5

CS 005

1

2

200

25

160

6 – 14

–

150

750

80 x 180

60 x 170

18

CS 005 WS

1

2

200

25

160

6 – 14

6 – 12,7

150

750

80 x 180

60 x 170

18

CS 005 RF

1

2

200

25

160

6 – 14

–

150

750

80 x 180

60 x 170

18

CS 005 RF WS

1

2

200

25

160

6 – 14

6 – 12,7

150

750

80 x 180

60 x 170

18

* Max speed of production depends on shape of parts, on material employed, on wire strength, on cutting and heading tonnage and on tools dimensions.

Machine supplied in compliance with "CE" standards – The manufacture reserves the right to change specifications, dimensions or descriptions without notice.
WS = warm series
